Anisotropic Wavefields

Source directory:

• examples/wavefields/anisotropic/

This example runs an isotropic acoustic baseline plus qP anisotropic equations with a centered source in a square physical domain.

Outputs

• acoustic_tariq_snapshots.png
• acoustic_tariq_records.png
• vti_snapshots.png
• vti_records.png
• tti_snapshots.png
• tti_records.png
• boundary_metrics.txt

Common Simulation Parameters

• physical size: (Lz, Lx) = (960 m, 960 m)
• grid spacing: (dz, dx) = (5 m, 15 m)
• time step: dt = 0.001 s
• number of time steps: nt = 1100
• absorbing boundary width: abcn = 20
• PML type: cpmlr
• dominant frequency: 15 Hz
• spatial order: 8
• snapshot times: 220, 320, 460
• source location: (x, z) = (480 m, 480 m)
• receiver line: z = 90 m, x = 90 m .. 870 m, 33 receivers

Model Parameters

Model	vp (m/s)	vv (m/s)	v (m/s)	epsilon	delta	eta	theta (deg)
Acoustic baseline	2500	-	-	-	-	-	-
Tariq	-	2300	2100	-	-	0.15	-
VTI-A	2500	-	-	0.3	0.3	-	-
VTI-B	2500	-	-	0.3	0.1	-	-
VTI-C	2500	-	-	0.1	0.3	-	-
TTI-A	2500	-	-	0.3	0.3	-	20
TTI-B	2500	-	-	0.3	0.1	-	20
TTI-C	2500	-	-	0.1	0.3	-	20

Recorded Fields

• Acoustic, VTI, and TTI: source on h1, receivers on h1
• Tariq: source on h1, receivers on f1

How to Run

Step 1. Run the anisotropic wavefield script.

cd /home/wangs0j/repo/sweep/examples/wavefields/anisotropic
python anisotropic_wavefields.py

Step 2. If you want to force the repo sources instead of an installed package, run:

PYTHONPATH=../../../src python anisotropic_wavefields.py

Example Figures

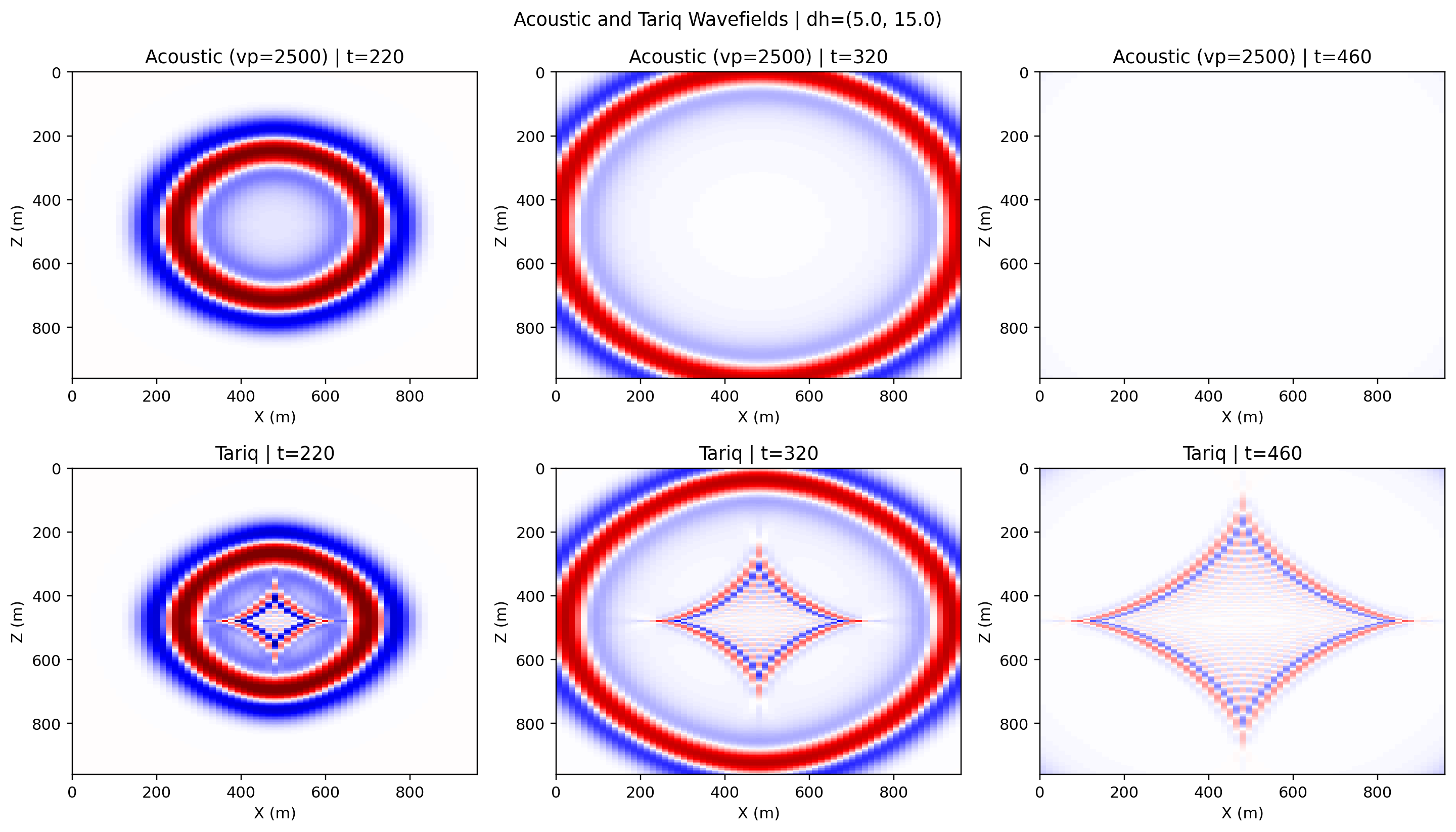

acoustic_tariq_snapshots.png: wavefield snapshots comparing the isotropic acoustic baseline and the Tariq qP equation under the same geometry and grid.

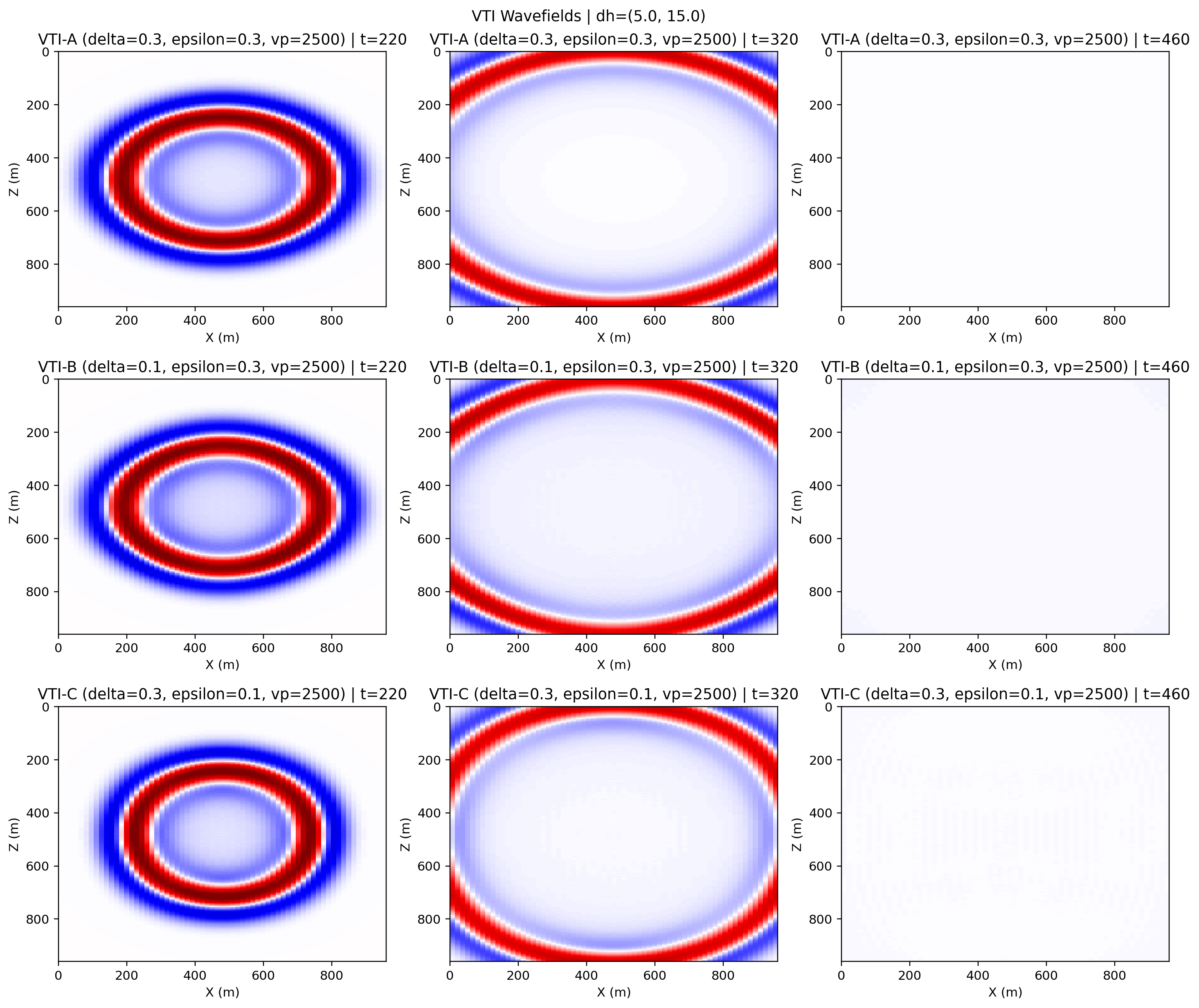

vti_snapshots.png: snapshot comparison for the three VTI parameter sets A/B/C.

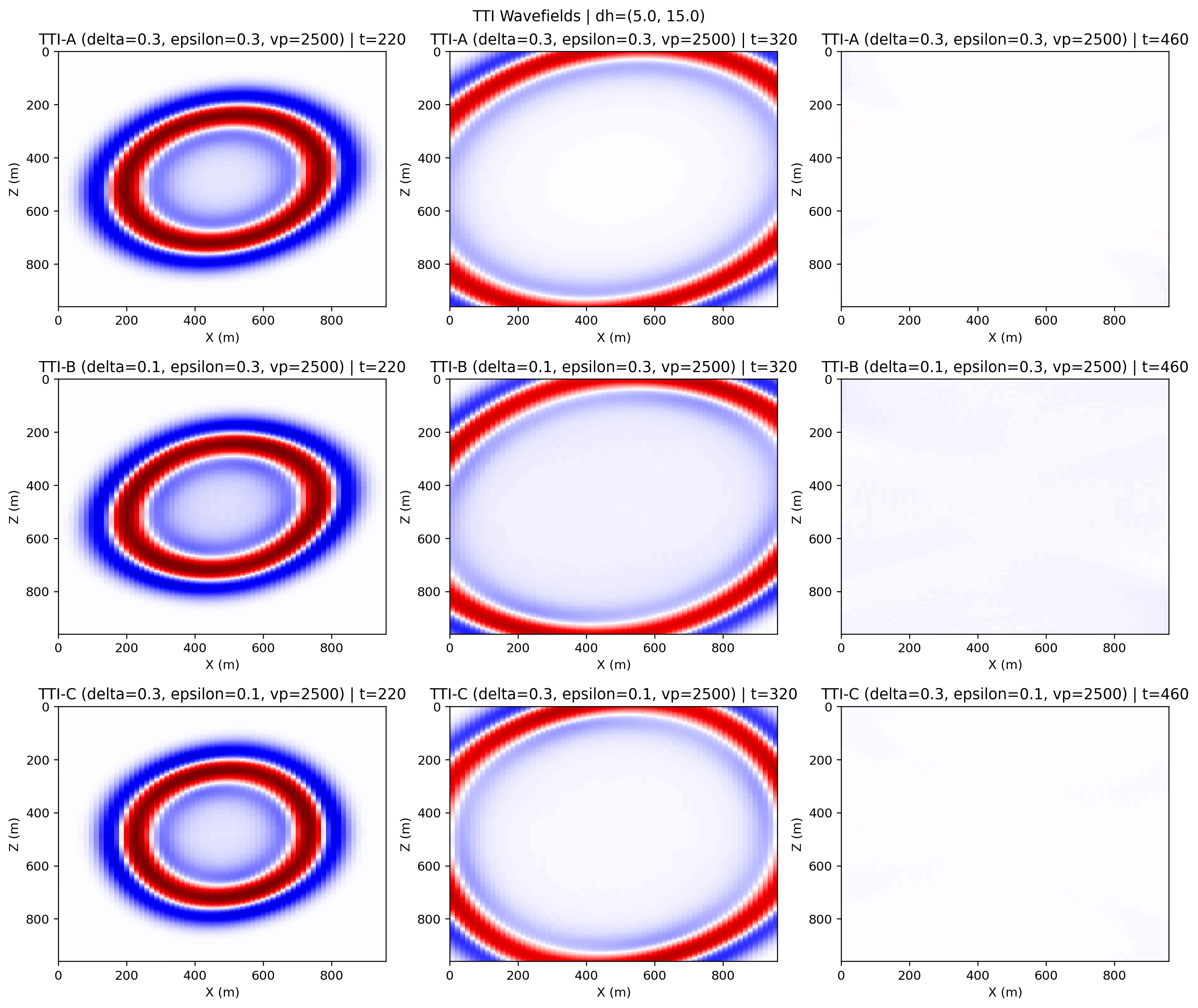

tti_snapshots.png: snapshot comparison for the three TTI parameter sets A/B/C.
